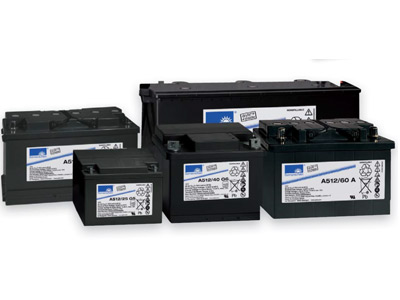

A500 系列
蓄电池型号额定电压(V)额定容量C20 (Ah, 25℃, 1.75V)电池尺寸长(L) /mm宽(b/W) /mm总高(H) /mmA512/200 A12200518274238A512/140 A12140513223223A512/120 A12120513189223A512/115 A12115286269230A512/85 A*1285330171236A512/65 G61265353175190A512/65 A1265353175190A512/60 G61260278175190A512/60 A1260278175190A5
产品特性
|  |  |  |
| 设计寿命 10--12年 | 标称容量 1.2-200Ah
| 整体电池 | 栅格状板栅结构 |
 |  |  |  |
| 阀控式铅酸蓄电池 | 可再生循环 | 耐深度放电 (根据DIN 43539 T5) | 免维护蓄电池 （无需加液） |
产品详情
| 蓄电池型号 | 额定电压(V) | 额定容量C20 (Ah, 25℃, 1.75V) | 电池尺寸 | |||
| 长(L) /mm | 宽(b/W) /mm | 总高(H) /mm | ||||
| A512/200 A | 12 | 200 | 518 | 274 | 238 | |
| A512/140 A | 12 | 140 | 513 | 223 | 223 | |
| A512/120 A | 12 | 120 | 513 | 189 | 223 | |
| A512/115 A | 12 | 115 | 286 | 269 | 230 | |
| A512/85 A* | 12 | 85 | 330 | 171 | 236 | |
| A512/65 G6 | 12 | 65 | 353 | 175 | 190 | |
| A512/65 A | 12 | 65 | 353 | 175 | 190 | |
| A512/60 G6 | 12 | 60 | 278 | 175 | 190 | |
| A512/60 A | 12 | 60 | 278 | 175 | 190 | |
| A512/55 A | 12 | 55 | 261 | 135 | 230 | |
| A512/40 G6* | 12 | 40 | 210 | 175 | 175 | |
| A512/40 A* | 12 | 40 | 210 | 175 | 175 | |
| A512/30 G6* | 12 | 30 | 197 | 132 | 180 | |
| A512/25 G5* | 12 | 25 | 167 | 176 | 126 | |
| A512/16 G5* | 12 | 16 | 181 | 76 | 167 | |
| A506/10 S* | 6 | 10 | 152 | 51 | 98 | |
| A502/10 S | 2 | 10 | 53 | 51 | 98 | |
| A512/10 S* | 12 | 10 | 152 | 98 | 98 | |
| A512/6.5 S | 12 | 6.5 | 152 | 66 | 98 | |
| A506/6.5 S | 6 | 6.5 | 152 | 35 | 98 | |
| A506/4.2 S | 6 | 4.2 | 52 | 62 | 102 | |
| A512/3.5 S* | 12 | 3.5 | 135 | 67 | 67 | |
| A508/3.5 S | 8 | 3.5 | 179 | 34 | 64 | |
| A506/3.5 S | 6 | 3.5 | 135 | 35 | 64 | |
| A504/3.5 S | 4 | 3.5 | 91 | 35 | 64 | |
| A512/2 S* | 12 | 2 | 179 | 34 | 64 | |
| A512/1.2 S* | 12 | 1.2 | 98 | 98 | 50 | |
| A506/1.2 S | 6 | 1.2 | 97 | 26 | 56 | |
